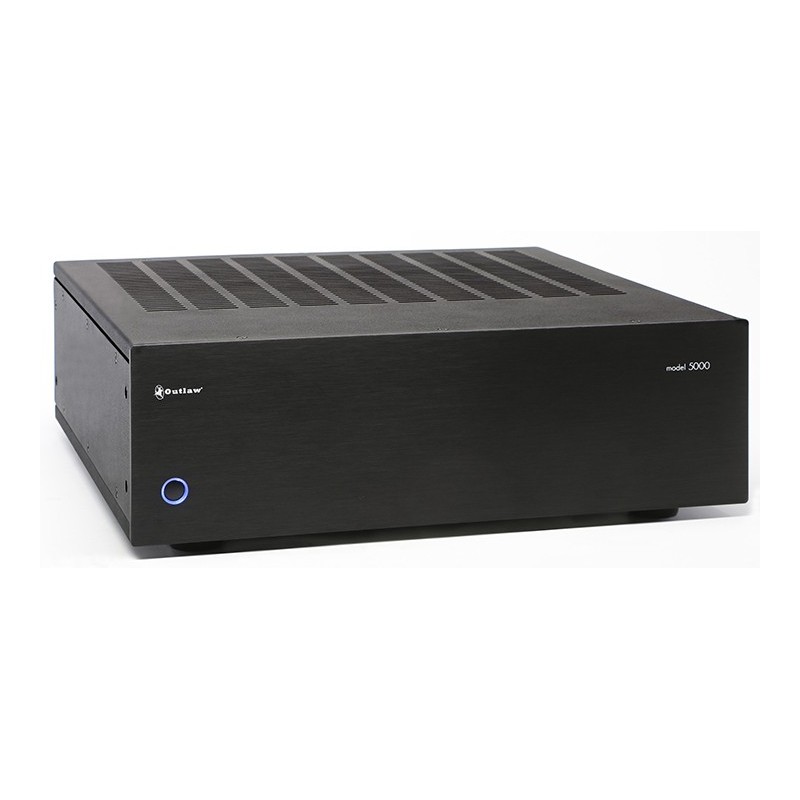

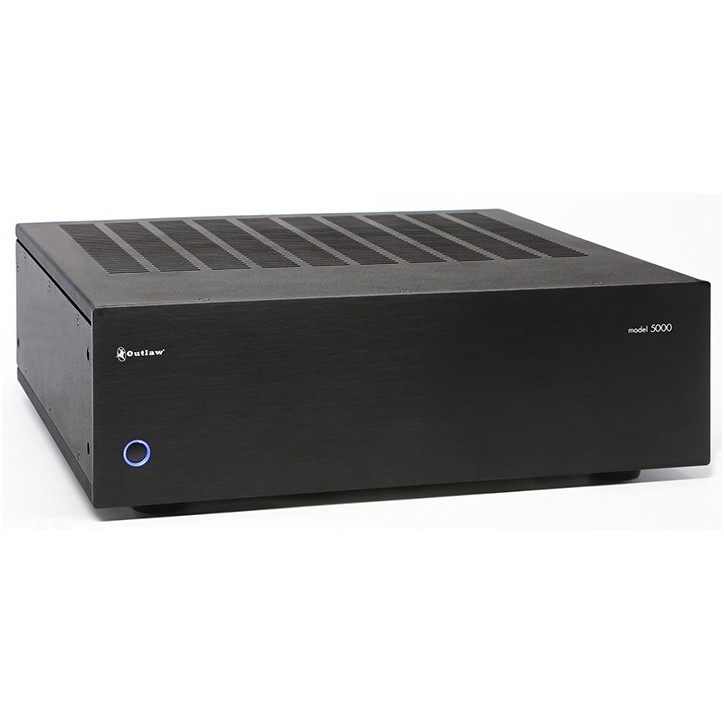

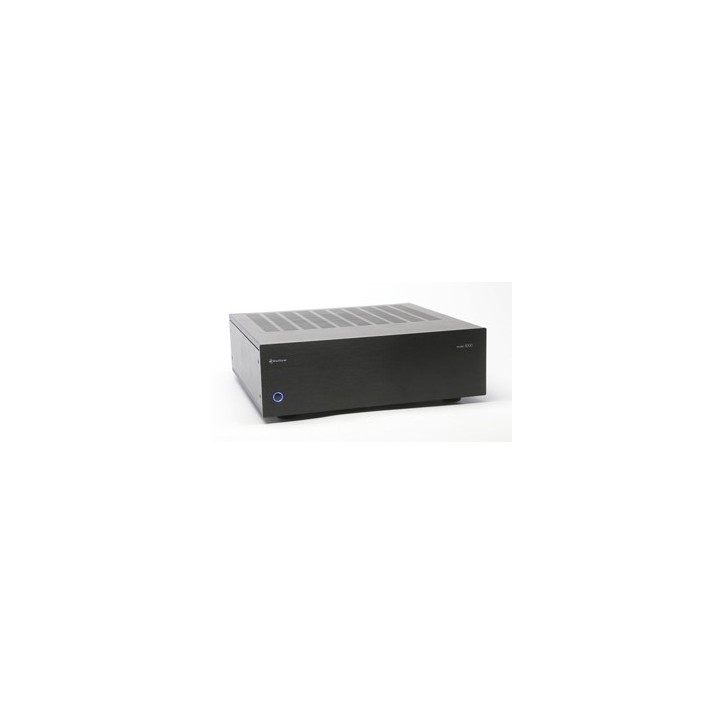

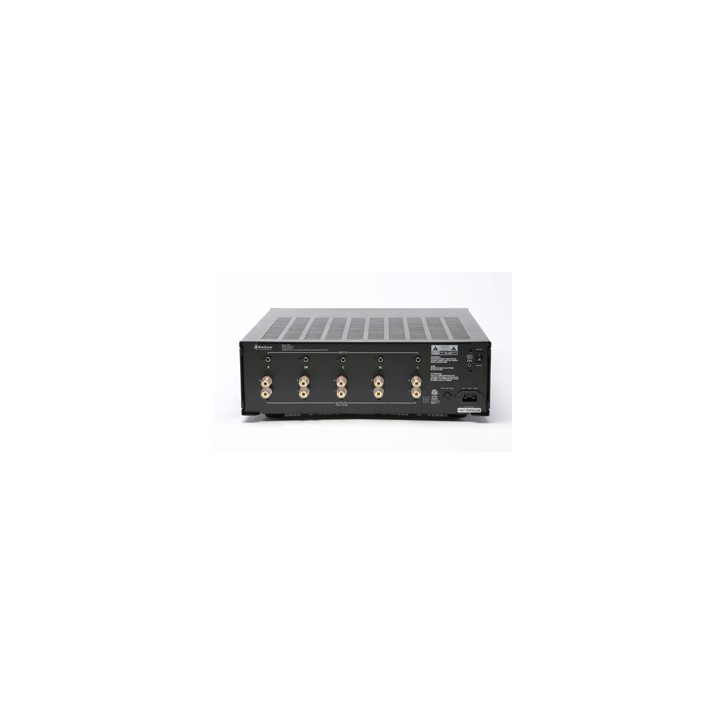

Model 5000 5-Channel Amplifier (factory refurbished)
$649.00
THIS IS A FACTORY CERTIFIED UNIT
Comes with 1 Year Warranty
The Model 5000: high performance and affordable 5-channel amplifier. Rated at 5 x 120 watts into 8 ohms or 5 x 180 watts into 4 ohms (all channels driven), the 5000 is ideal for those who have moderate size living areas and desire a 5-channel home theater. Among the 5000 features:
- A differential-sensing RCA input circuit designed to reject input hum.
- Independent power supply rectification for each of the 5 channels, to ensure excellent isolation.
- Two pairs of 150-watt Toshiba bi-polar output transistors per channel for fail-safe reliability.
- Separate output protection relays for each channel, designed to disengage the speaker from the amp in the unlikely case of a short, or excessive DC offset.

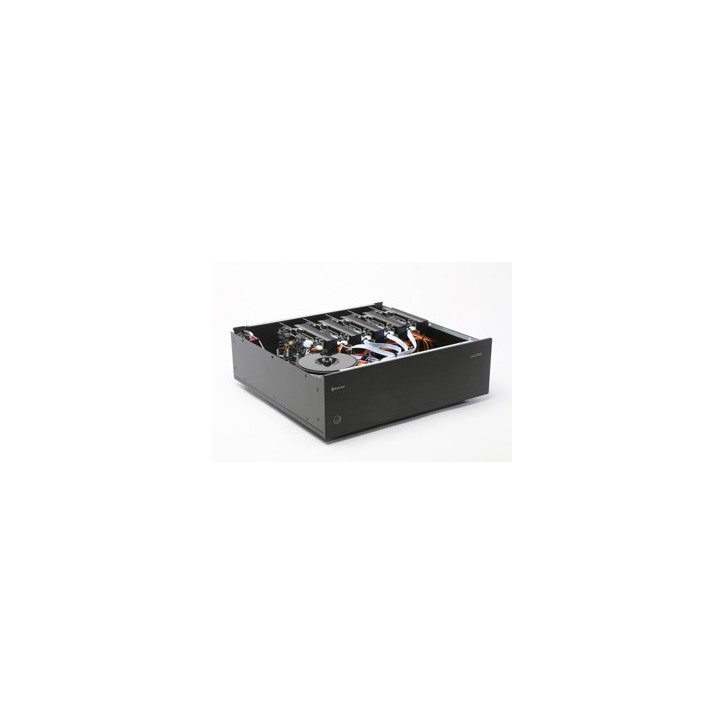

- A modular audio channel design to ensure each audio signal is isolated from the other channels, from input all the way to output.
Data sheet
- Crosstalk
- Greater than -70dB from 20Hz – 20kHz
- Frequency Response
- 20Hz -20kHz +/- 0.5 dB at rated output (120W)
- Input Impedance
- 40KOhms
- Input Sensitivity
- 1 Volt
- Intermodulation Distortion
- Less than 0.05% from 250mV to output full rated output (120W)
- Power Output
- 120 watts RMS x 5 (all channels driven simultaneously into 8 ohms from 20 Hz to 20 kHz with less than 0.02% total harmonic distortion, A-weight filter).
180 watts RMS x 5 (all channels driven simultaneously into 4 ohms from 20 Hz to 20 kHz with less than 0.03% total harmonic distortion, A-weight filter) - Signal to Noise
- 105dB A-Weighted
- Dimensions
- 5.8215" x 17.0" x 16.75" (HxWxD)
